Spesifikasjoner:

Type

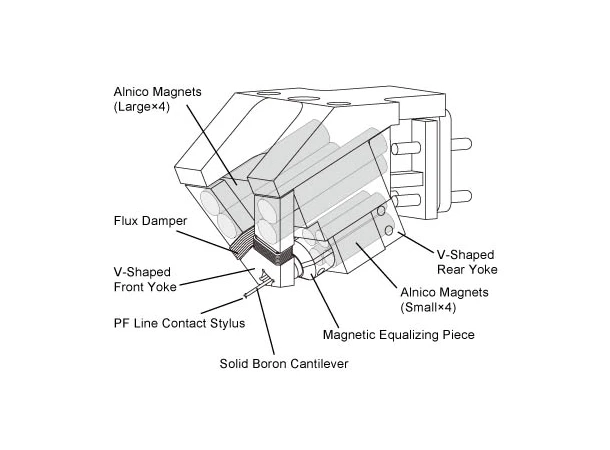

low output moving coil cartridge
with multi Alnico magnets and the Flux damper

Output Voltage

0.28 mV (at 1KHz, 5cm/sec.)

Channel Separation

30 dB (at 1KHz)

Channel balance

1.0 dB (at 1KHz)

Frequency response

20 - 20,000 Hz(±1dB)

Compliance

10 mm/N

Tracking force

1.8 - 2.2 g

Impedance

6 ohms

Recommended load impedance

> 30 ohms

Cantilever

6mm length solid boron

Stylus tip

PF Line contact shape,
stylus radius: 7 x 30 micron

Weight

12.6 g
