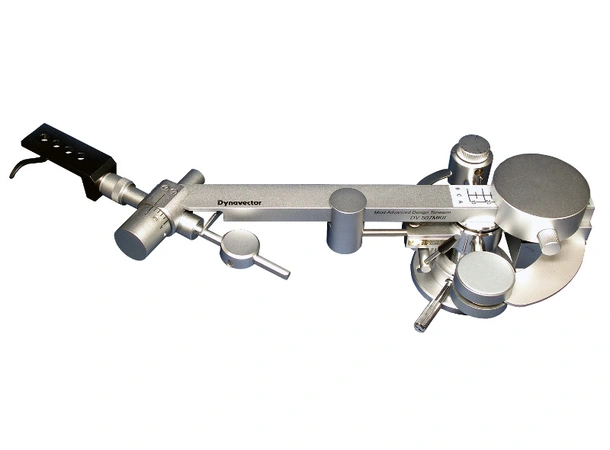

Bi-Axis inertia controlled Dynamic and Eddy Current Damping. Dynamic Balance type tone arm
Overall length 306 mm With head shell: max 326 mm
Effective length241 mm (i.e. tonearm pivot point to cartridge stylus point)
Overhang15 mm
Offset angle21.5 degree
Height59 mm lifts up to 92 mm
Height adjustment range39 mm - 72 mm at sub arm center
Depth36 mm without connecting cable
Optimum cartridge weight15 - 35 g, including headshell
Horizontal tracking angle error-1.1 degree - +2.2 degree, 0 degree at inner band of record, 2.2 degree at outside
Tracking force adjustment range0-38 g by 0.2 g step
Sensitivity Horizontal: Less than 50 mgrams, Vertical:less than 40 mgrams
Net weight: 1,380 g
Output connection: 5P connector

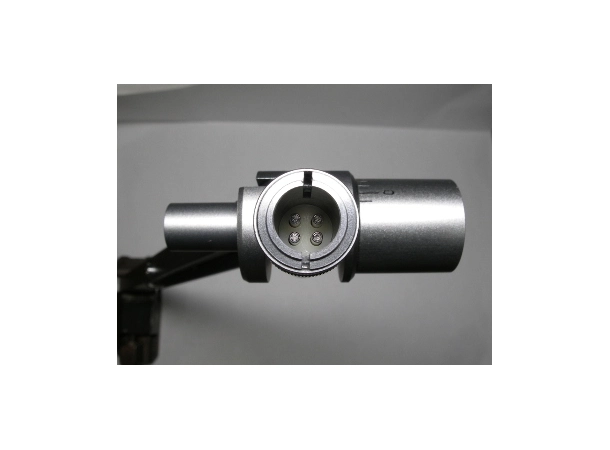

Headshell connection: EIA standards 4 Pin connector

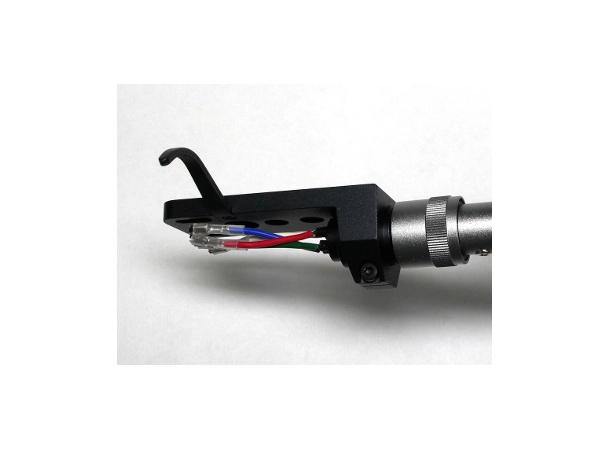

Accessarylow resistance (0.046 ohms/m, 54pF/m) high quality arm cable, milled aluminium headshell weight 15.4 g. mounting template for the arm overhang guage for the headshell
