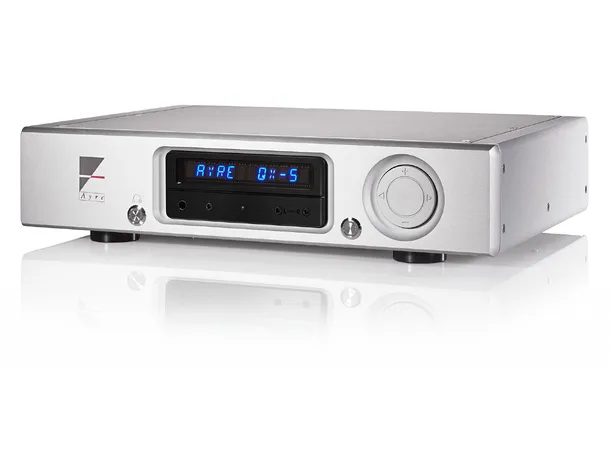

QX5
Twenty er årets beste DAC i Lyd & Bilde 2017/18
Men denne drømmemaskinen fra Ayre Acoustics er så mye mer enn det! Nettverksspiller
som er Roonready, digital pre-amp, og internettradio, samt glitrende god single
ended/balansert hodetelefonforsterker! Les hele testen fra Lyd & Bilde her: http://www.lydogbilde.no/test/hi-fi/ayre-qx-5-twenty
Features
- zero-feedback, fully-balanced discrete circuitry
- Ayre’s Asynchronous S/PDIF input.
- ESS ES9038PRO DAC chip
- Ayre & Morion jointly-developed crystal oscillator.
- Ayre’s Minimum Phase digital filter
- Single-pass 16x oversampling
- Ayre’s Diamond output stage
- Ayre’s exclusive Equilock circuit
- 100 step digital volume control
- Linear analog power supply
- High-speed circuit board material

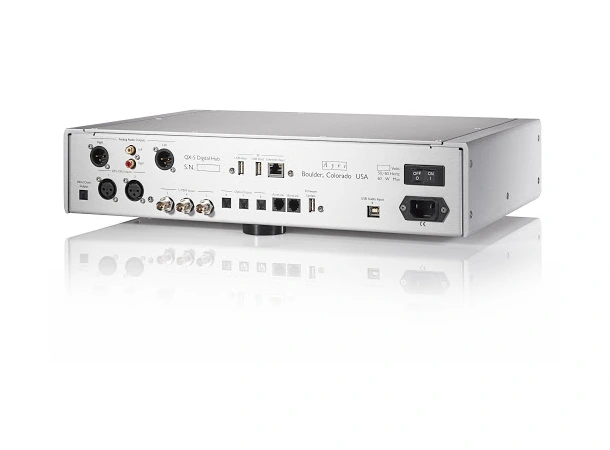

- Ten digital inputs: Ethernet, Asychronous USB, AES/EBU (2), Optical (3), S/PDIF (3)
- Ayre Conditioner power line RFI filter
Specifications
Audio Inputs
USB: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
PCM 16, 20, 24 bits
DSD64 and DSD128 (as DoP)
Optical/SPDIF/AESEBU: 44.1, 48, 88.2, 96, 176.4, 192 kHz
PCM 16, 20, 24 bits
DSD64 (as DoP)
Network: 44.1, 48, 88.2, 96, 176.4, 192 kHz
PCM 16, 20, 24 bits
DSD64 (as DoP)
Outputs
Line Output: 4.5 Vrms balanced, 2.25 Vrms single-ended
Headphone Output: 9.0 Vrms balanced, 4.5 Vrms single-ended
XLR Input Polarity
Pin 1 = Ground
Pin 2 = Non-inverting (Positive)
Pin 3 = Inverting (Negative)
Power Consumption
60 watts in operating mode
Dimensions
17.25" W x 13.00" D x 3.75" H
(44cm x 33cm x 10cm)
Weight
16 pounds (7.25 kg)
